Elektron Tonverk Ultimate Bundle
  • Elektron Tonverk Ultimate Bundle
Elektron Tonverk Ultimate Bundle
Spare €168,00
Elektron
New

Elektron Tonverk Ultimate Bundle

  • 16-track polyphonic multisampler
  • Outbox 8: eight separate outputs
  • OH-7 Overhub 7-port USB 3.0
  • Auto-sampler and routing
  • Set price, one delivery
€1.599,00
€1.599,00 €1.767,00
Inkl. MwSt. • B2B ohne MwSt.
i
Auf Bestellung verfügbar

Benachrichtigen, sobald verfügbar

Dieser Artikel wird auf Bestellung geliefert. Hinterlassen Sie Ihre E-Mail und sagen Sie uns, bis wann Sie ihn brauchen — wir melden uns mit einem genauen Liefertermin und informieren Sie, sobald er versendet wird.

Elektron Tonverk Ultimate Bundle €1.599,00

Kein Spam — wir nutzen dies nur, um auf Ihre Anfrage zu antworten.
In Raten zahlen Klarna
  • 3 × €533,00 Zinsfrei · 18+, AGB gelten
Ratenkauf ansehen
In this bundle 3 products
Bought separately: €1.767,00 You save €168,00
Modelle / Alternativen
Elektron Tonverk Ultimate BundleElektron Tonverk Ultimate Bundle Elektron Digitakt II Ultimate BundleElektron Digitakt II Ultimate Bundle Elektron Digitone II Ultimate BundleElektron Digitone II Ultimate Bundle Elektron Syntakt Ultimate BundleElektron Syntakt Ultimate Bundle Elektron Trinity Bundle: Digitakt II + Digitone II + Syntakt + Outbox 8 + OverhubElektron Trinity Bundle: Digitakt II + Digitone II + Syntakt + Outbox 8 + Overhub
Kostenloser Versand
Kostenlose Lieferung ab €149 oder €4 zur Abholstation. Ankunft in 3–5 Werktagen. Mehr erfahren
Versand, sobald verfügbar
Derzeit nicht in unserem lokalen Lager — bestelle es und wir versenden es, sobald es eintrifft. Den aktuellen Zeitpunkt findest du am Lagerhinweis oben. Mehr erfahren
Preisgarantie
Woanders günstiger gefunden? Wir passen den Preis an. Mehr erfahren
Vincas Brauchst du Beratung?Unsere Experten sind da Wir sind meistens unter der Hotline 10:00–18:00 Uhr erreichbar (Mittagspause 13:30–14:30 Uhr). Wenn wir Sie verpassen — Entschuldigung, wir sind nur Menschen. Auf einfache Fragen antworten wir normalerweise innerhalb weniger Stunden.

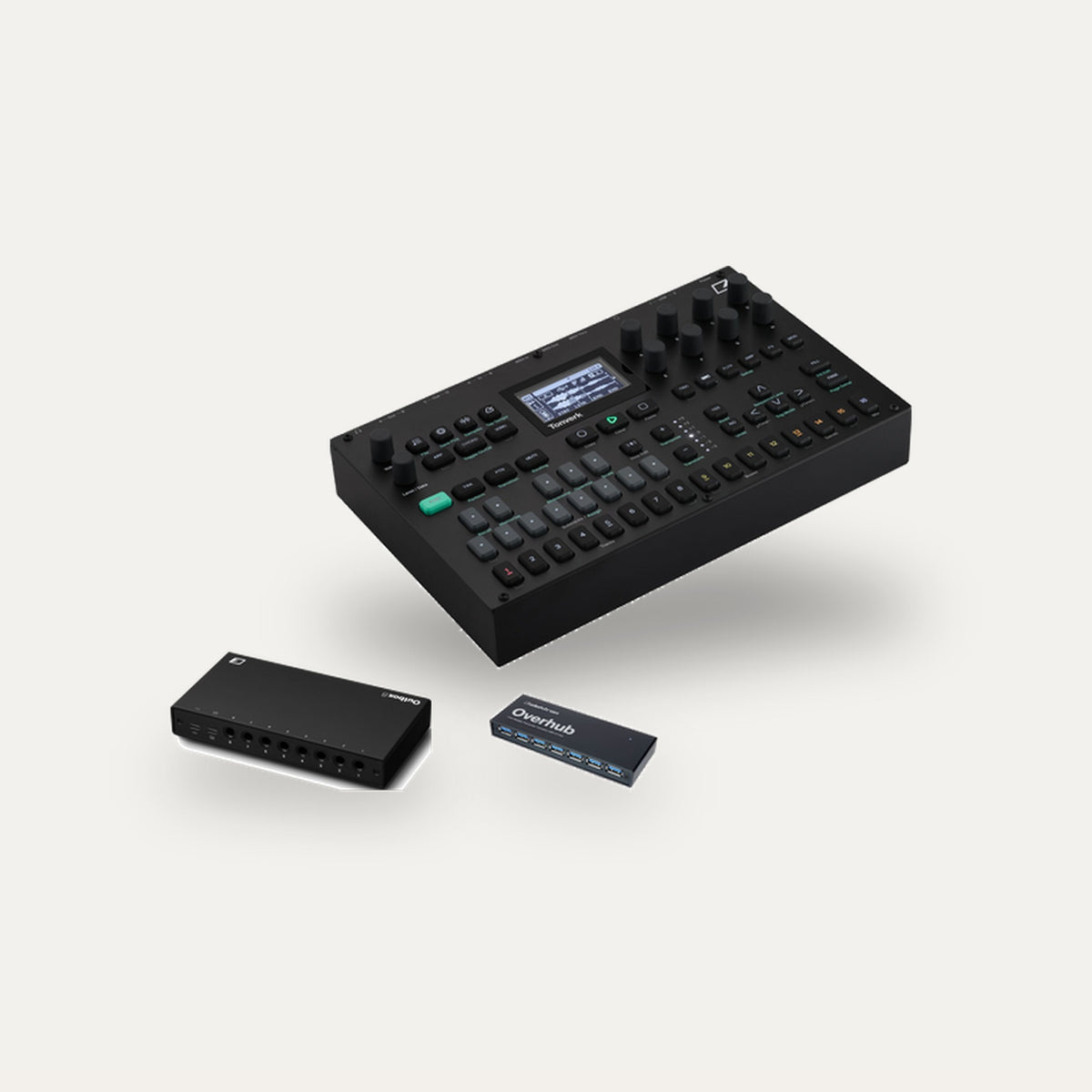

Elektron Tonverk Ultimate Bundle – Multisampler, Eight Outputs, One Hub

Tonverk is Elektron's 16-track polyphonic multisampler and audio processor: eight stereo audio tracks, bus and send tracks, an auto-sampler and routing deep enough to be the centre of a studio. This bundle gives it the outputs and the hub that centre needs – Outbox 8 for individual track outs to a desk or outboard, and the OH-7 Overhub so Tonverk, Outbox and the rest of the setup share one USB 3.0 host connection.

In This Setup

  • Elektron Tonverk – 16-track polyphonic multisampler: Single Player, Multi Player and Subtracks machines, 8 audio tracks plus bus and send tracks.
  • Elektron Outbox 8 – eight configurable 1/4-inch outputs for audio or CV over USB-C.
  • Elektron OH-7 Overhub – 7-port USB 3.0 hub, class-compliant, angled housing.

Why This Combination

  • Eight stereo tracks deserve more than a stereo pair: Outbox 8 takes the Tonverk mix out in stems.
  • Processor in, processor out: with separate outputs Tonverk becomes an insert for the rest of the desk.
  • Hub built for Elektron: stable SuperSpeed ports for every machine in the room.

Set price includes all three products.
Sixteen tracks, twelve ways out

Sixteen tracks, twelve ways out

Tonverk with the Outbox 8 for CV and extra routing, and a hub to hold the desk together.

Tonverk is Elektron's polyphonic multisampler: eight stereo audio tracks with eight voices each, four bus tracks, three sends and a mix track, sequenced up to 256 steps. This set adds the Outbox 8 for eight further assignable jacks, which is where the control voltage for a modular case comes from, and the OH-7 Overhub so the machine, the Outbox and the computer share one stable connection. It is a routing-first rig for producers who mix outside the box.

  • 8 stereo audio tracks, 8 voices each
  • Up to 256 steps per pattern
  • Four balanced outputs plus eight from the Outbox 8
  • Pitch, gate, trig and clock CV to modular
  • Seven USB 3.0 ports on one host connection
Elektron Tonverk 16-track sampler, front view
Elektron Tonverk control panel and knobs
Elektron Tonverk sampler, angled view
The sampler

Elektron Tonverk

Eight stereo audio tracks with eight voices each, four bus tracks, three sends and a mix track, all under one sequencer. Single Player, Multi Player and Subtracks cover one-shots, multisampled instruments and drum kits, with Grainer and Wavefinder for the more abstract work.

  • Eight stereo audio tracks with eight voices each, plus four bus, three send and one mix track
  • Six machines per track: Single Player, Multi Player, Subtracks, Grainer, Wavefinder and MIDI
  • Up to 256 steps per pattern and track, with individual pattern length
  • Nineteen onboard effects across track, send and bus positions
  • Four balanced outputs, two balanced inputs, two USB-C ports and an SD card slot
  • 64 GB SD card, PSU-5 and USB-C cable in the box
Specifications
Tracks16 total: 8 stereo audio, 4 bus, 3 send, 1 mix
Voices8 voices per audio track
MachinesSingle Player, Multi Player, Subtracks, Grainer, Wavefinder, MIDI
SequencerUp to 256 steps per pattern and track, individual pattern length
Effects19 effects, including Rumsklang Reverb, Infinite Flanger, Chrono Pitch and Dirtshaper
Connections4 x 1/4 in balanced outs, 2 x 1/4 in balanced ins, headphones, MIDI In/Out/Thru, 2 x USB-C, SD card
Converters48 kHz, 24-bit
Dimensions / weight286 x 176 x 63 mm / approx. 1.85 kg
View product
Elektron Outbox 8 patched on a studio desk with a Tonverk in the foreground
Elektron Outbox 8 being configured from the Outbox 8 Web App on a phone
Elektron Outbox 8, angled view showing eight 1/4 inch outputs
The outputs

Elektron Outbox 8

Eight configurable 1/4 inch jacks on a single USB-C connection. With Tonverk it is set up from the browser Web App rather than the machine, and it is mainly worth having for CV duties and extra physical routing.

  • Eight 1/4 inch impedance-balanced, DC-coupled jacks, each assignable to audio or CV
  • 48 kHz, 32-bit D/A converters
  • CV range of plus/minus 5 V with pitch V/Oct, pitch Hz/V, linear value, trig, gate and clock
  • Class-compliant over USB-C, so a computer, tablet or phone sees an eight-output interface with no drivers
  • 176 x 90 x 28 mm and 0.35 kg, bus-powered from USB-C
Specifications
Outputs8 x 1/4 inch impedance-balanced, DC-coupled audio/CV
Converters48 kHz, 32-bit D/A
CV rangeplus/minus 5 V
CV signal typesPitch V/Oct, Pitch Hz/V, Linear Value, Trig, Gate, Clock
Data port1 x USB 2.0 High-Speed Type-C
PowerUSB Type-C, 5 V / 0.5 A / 2.5 W or higher
Dimensions176 x 90 x 28 mm including feet
WeightApprox. 0.35 kg
View product
Elektron OH-7 Overhub seven-port USB hub
Elektron OH-7 Overhub, port detail
The hub

Elektron OH-7 Overhub

One host connection, seven ports. The Overhub keeps the machines, the Outbox 8 and a controller on a single stable connection to the computer, which is what Overbridge needs.

  • Seven USB 3.0 SuperSpeed ports from one host connection
  • Data rate up to 5 Gbit/s, backwards compatible with earlier USB devices
  • Class-compliant with macOS, Windows and Linux, no driver install
  • Angled housing keeps cables accessible on a crowded desk
  • Built for Overbridge-enabled machines
Specifications
Ports7 x USB 3.0 SuperSpeed
Data rateUp to 5 Gbit/s
CompatibilityClass-compliant: macOS, Windows, Linux
HousingCompact, stackable, angled for cable access
Dimensions10.5 x 6.5 x 2.8 cm
Weight200 g
View product

Key technologies

  • Class-compliant USB audio
  • Parameter locks
  • Trig conditions
  • Micro timing
  • MIDI to CV
  • DC-coupled outputs
  • Grainer
  • Wavefinder
  • Subtracks
  • Auto Sampler
  • Rumsklang Reverb
  • Supervoid Reverb

Setting it up

  1. Power Tonverk from the supplied PSU-5 and leave the 64 GB SD card in place for sample storage.
  2. Take the four balanced outputs into the desk or interface, using the bus and send tracks to decide what leaves on which pair.
  3. Connect the Outbox 8 to the Tonverk or the computer with a USB-C cable, and power it from its own USB-C input.
  4. Open the Outbox 8 Web App in a browser that supports Web MIDI, and assign the eight jacks to audio or CV.
  5. Put the Tonverk, the Outbox 8 and anything else on the OH-7 Overhub, and run one cable from the hub to the computer.

Questions

How well does the Outbox 8 work with Tonverk?

With limits. Tonverk is configured from the browser Web App rather than in-device, and audio streaming latency is higher than on the Overbridge machines. CV, gate and clock duties work as they do on any other host.

Which cable connects the two?

The Outbox 8 ships with a USB-C to USB-B cable and Tonverk's ports are USB-C, so a USB-C to USB-C cable is the one to have to hand.

Does Tonverk not already have separate outputs?

It has four balanced outputs plus a headphone jack, fed by four bus tracks and three sends. The Outbox 8 adds eight more assignable jacks and, more to the point, the control voltage that Tonverk cannot produce on its own.

What does the Web App need?

A browser with Web MIDI support. The configuration runs in the browser and writes the output assignments to the Outbox 8.

Can it sequence a modular rack?

Yes, through the Outbox 8. Each jack sends pitch as V/Oct or Hz/V, gate, trig, linear value or clock at plus or minus 5 V.

How long can Tonverk's patterns run?

Up to 256 steps per pattern and track, with individual pattern length per track, so tracks of different lengths can run against each other.

Is storage included?

Yes. A 64 GB SD card ships with Tonverk, along with the PSU-5 power supply, a USB-C cable and the artwork.

Is a case included?

No, and the Analog Cases Pulse Case does not fit: Tonverk is 286 mm wide against the 215 mm chassis the Pulse Case is cut for.
